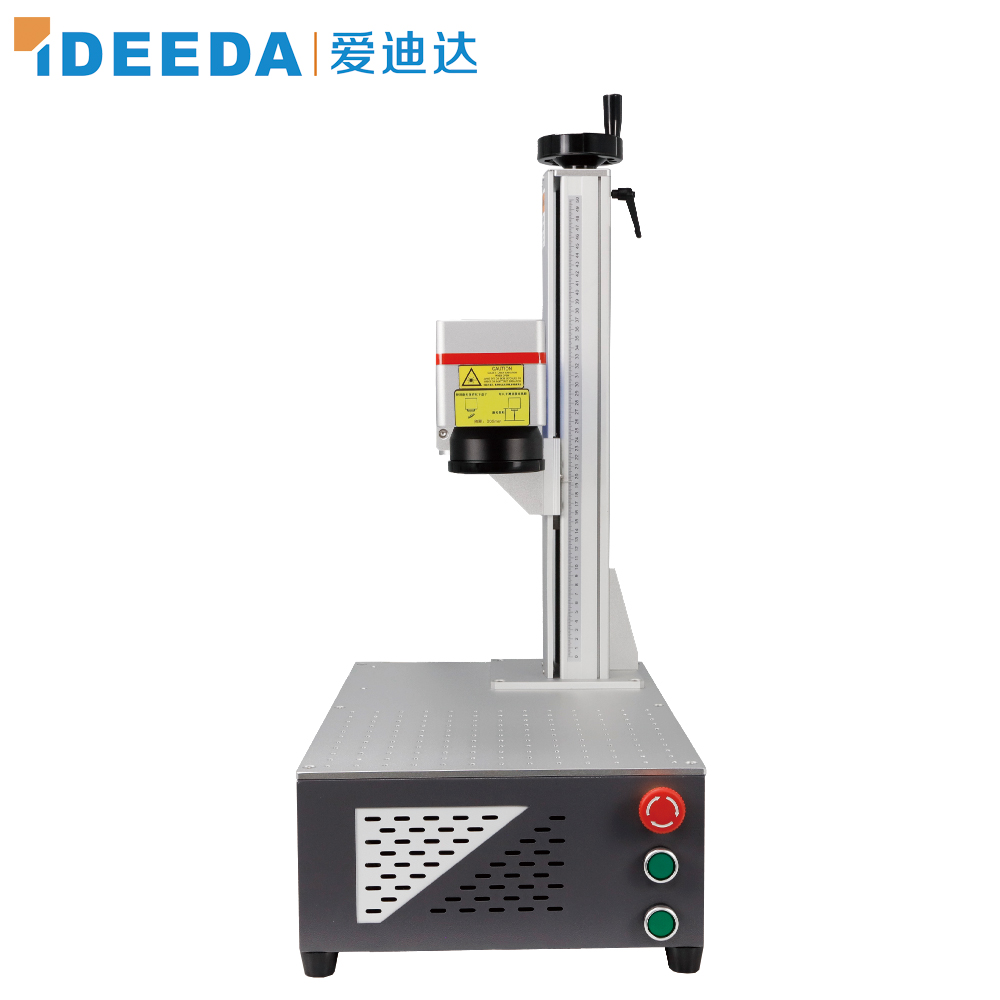

Industry-standard fiber laser …

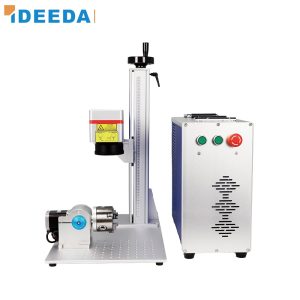

| Specification | Fiber Laser Marking Machine This model | DLM-FS-50 Split-type Fiber Laser Marking Machine | DLM-FS-30 Split-type Fiber Laser Marking Machine |
|---|---|---|---|
| Laser Source | Fiber Laser (Raycus/IPG) | — | — |
| Power | 20W / 30W / 50W | — | — |
| Marking Area | 110×110mm / 175×175mm / 300×300mm | — | — |
| Marking Speed | ≤8000mm/s | ≤7000mm/s | ≤7000mm/s |
| Frequency | 20-80kHz | — | — |
| Laser Wavelength | — | 1064nm | 1064nm |
| Brand | — | JCZ - LV7 | JCZ - LV7 |
| Laser Power | — | 50W | 30W |
| Repetition Frequency | — | 50~100kHz | 40~60kHz |
| Pulse Width Range | — | 120~150ns | 130~160ns |
| Power Adjustment Range | — | 10~100% | 10~100% |
| Dual Red Light | — | Manual (Optional Dual Red Light Focusing) | Manual (Optional Dual Red Light Focusing) |
| Focal Length Height | — | F=163mm | F=163mm |
| Marking Range | — | 110*110mm (Optional 150*150mm / 175*175mm / 220*220mm) | 110*110mm (Optional 150*150mm / 175*175mm / 220*220mm) |
| Min Line Width | — | 0.06mm @ F=163mm (Differences In Materials) | 0.06mm @ F=163mm (Differences In Materials) |
| Min Character | — | 0.2mm @ F=163mm | 0.2mm @ F=163mm |
| Repeatability Accuracy | — | 0.01mm | 0.01mm |
| Software | — | Ezcad2,Compatible with LightBurn | Ezcad2,Compatible with LightBurn |
| Support System | — | Windows | Windows |
| Support File Formats | — | Jpg | Jpeg | Bmp | Gif | Png | Ai | Plt | Dxf | Svg | Jpg | Jpeg | Bmp | Gif | Png | Ai | Plt | Dxf | Svg |
| Software Language | — | Chinese | English | French | Russian| German | Italian |Korean | Japanese etc. | Chinese | English | French | Russian| German | Italian |Korean | Japanese etc. |
| Lifting Method | — | Manual Lifting (Optional Electric Lifting) | Manual Lifting (Optional Electric Lifting) |
| Computer | — | Not Included, Optional To Add | Not Included, Optional To Add |
| Cooling Method | — | Air Cooling | Air Cooling |
| Power Supply | — | 110~220V 50Hz~60Hz | 110~220V 50Hz~60Hz |
CE · ISO 9001 · FDA-compliant manufacturing
Full technical support & global service network
Best quote with free sample test & fast delivery
Industry-standard fiber laser marking solution. Deep engraving, annealing, and surface marking on metals. CE/RoHS/FDA certified.
| Laser Source | Fiber Laser (Raycus/IPG) |
|---|---|
| Power | 20W / 30W / 50W |
| Marking Area | 110×110mm / 175×175mm / 300×300mm |
| Marking Speed | ≤8000mm/s |
| Frequency | 20-80kHz |
Watch the marking demo on various materials
Want to see how it performs on your materials? Request a free sample test.
This machine can permanently mark most metals including steel, stainless steel, iron, aluminum, copper, brass, titanium, gold, silver, and hard alloys. It also works on ABS, PVC, PC, nylon, and other hard plastics.
The machine comes with EZCAD software (Windows) included at no extra cost. It is also compatible with LightBurn, a popular third-party laser control software.
Air-cooled models require no external water chiller — just plug into a standard power outlet. Cabinet models have built-in cooling fans.
Yes, you can upgrade the marking area by replacing the F-theta lens. We sell F-theta lenses separately and can guide you through installation.
Supported formats include PLT, DXF, AI, SVG, JPG, GIF, BMP, PNG, and more. Both vector and raster files are supported.
